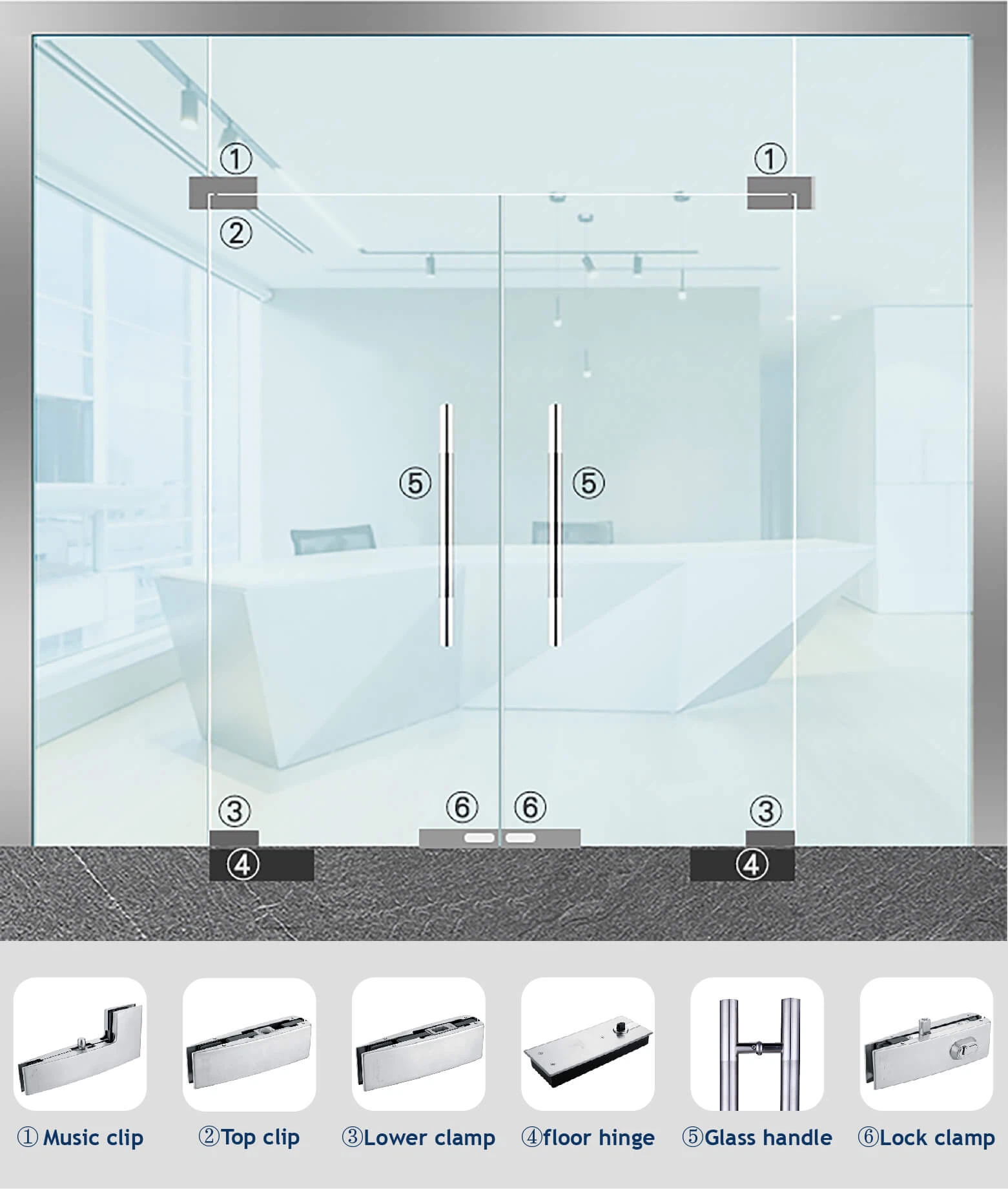

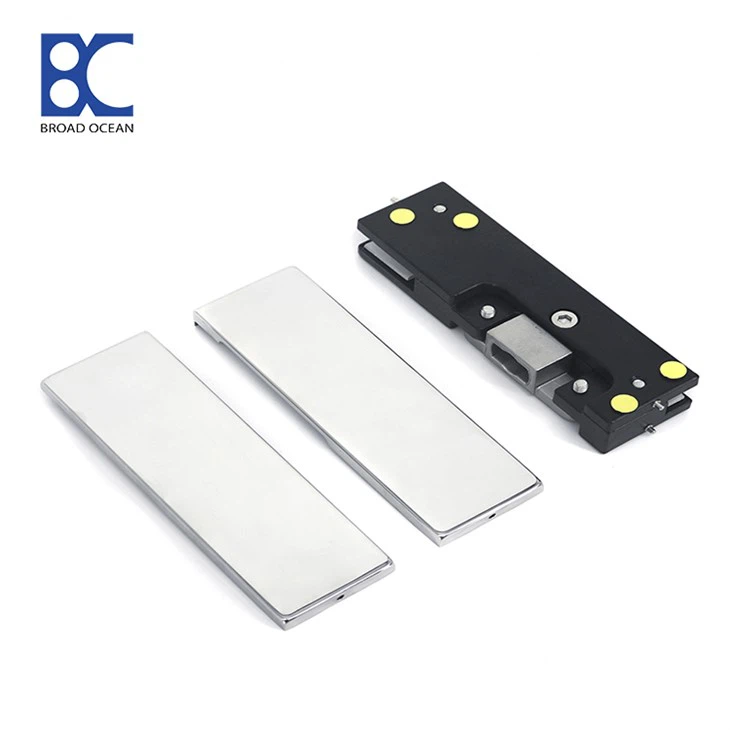

Stainless Steel Patch Fittings are a device used to fit glass doors. It is suitable for installing on the door frame of the glass door as an important part for connecting and supporting the glass door. It is made up of several different components, including patches, weights, mounting bolts, and more. It not only plays the role of connection and support, but also improves the overall stability and safety of the glass door.
It is usually made of stainless steel, which is corrosion-resistant and durable. Because of its strong and durable, easy installation and beautiful appearance, it is widely used in the installation of glass doors in various places such as commercial buildings, office buildings, hotels, and homes. Design and dimensions can be customized according to specific needs to accommodate different types and sizes of glass doors.
Specifications
|
Model |
DL-002 |
|
Product name |
stainless steel patch fittings |
|
Size |
162*32*50mm |
|
Material |
Aluminium |
|
Cover plate |
Stainless steel |
|
Finish |
Satin or Polish |
|
Glass thickness |
8-12mm |
|
Max door size |
1000*2500*8-12mm |
|
Advise loading |
100KGS |
|
Application |
Glass door |
Structural Design
The structural design of Stainless Steel Patch Fittings mainly includes the following three parts:
1. SMD support: SMD support is the main component. It is usually installed on both sides of the glass door. The patch support is made of stainless steel material, which has the function of fixing the glass door and keeping it stable.
2. Spacers: Another important part of patch fittings is the spacer. Gaskets are usually installed between the patch support and the glass door to cushion and protect the glass door. The gasket is generally made of rubber or silicone material, which has good shockproof and protective properties.
3. Geometric Structure: Its geometric structure design usually adopts a simple and compact shape to ensure its stability and reliability. These fittings are usually of solid construction and are able to withstand high pressure and weight.
Anti-Corrosion and Anti-Rust Functions
Stainless steel patch fittings are known for their excellent corrosion resistance and rust prevention capabilities. This is due to the properties of stainless steel, a low carbon iron alloy that contains a minimum of 10.5% chromium. The high chromium content in stainless steel forms a protective oxide layer on the surface, known as the passive layer, which acts as a barrier against corrosion and prevents the material from rusting.
The passive layer is stable and self-repairing, meaning that if it gets damaged or scratched, it can quickly reform and continue providing protection. This makes the patch fittings highly resistant to various corrosive elements and environments, including moisture, humidity, acids, and alkalis. They are suitable for both indoor and outdoor use, making them versatile for a wide range of applications.
Furthermore, stainless steel patch fittings are also resistant to staining and discoloration, as they do not react with common substances found in daily use, such as water, soap, or cleaning agents. This ensures that the fittings maintain their aesthetic appeal and do not develop unsightly stains or corrosion spots over time.
Overall, the corrosion resistance and rust prevention properties make them a reliable and durable option for applications where exposure to moisture, harsh chemicals, or outdoor elements is a concern. They provide long-lasting functionality and retain their attractive appearance, even in challenging environments.
